Bag Filter Replacement High Flow Cartridge, PLBG Series

Filter bags are simple to run, but on a high flow line they load fast and are changed often. A pleated element packs more media into the housing space a bag occupies, and that is the reason to consider switching. Pullner's pleated high flow cartridge for this duty is designed to replace bag filters.

Media is deep pleated or melt polypropylene in grades from 0.1–100 µm. The element is 6" (152.4 mm) in diameter with a single open end, in 330 mm and 660 mm lengths, and carries 100–200 GPM. It is rated to a maximum differential pressure of 3.44 bar at 21°C and a temperature limit of 80°C, with seals in silicone, NBR, Viton or EPDM. For hotter duty, look at the glass fiber options in Pullner high flow filter cartridges instead.

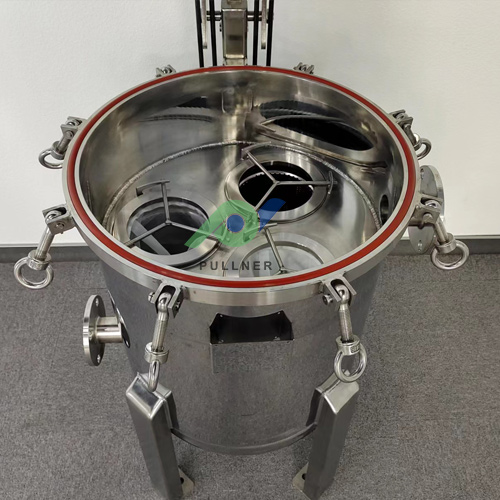

Switching from bags is reviewed, not assumed. Send the bag size, housing make and model, and a photo of the housing opening. Engineering confirms whether the element fits your existing housing before quotation. If it does not, Pullner also supplies filter housings. Minimum order is 4 pieces; lead time is 10 working days.

Key Features

• Pleated PP media — deep pleated or melt polypropylene in place of a filter bag.
• Micron range — 0.1–100 µm.
• Housing format — 6" (152.4 mm) OD with a single open end, in 330 mm or 660 mm lengths.
• Flow — 100–200 GPM per element.
• Rated limits — max. differential pressure 3.44 bar at 21°C; temperature limit 80°C.
• Seals — silicone, NBR, Viton or EPDM O-rings.

Applications

• Industrial water — replacing bag filter stages on high flow prefiltration.
• RO and desalination pre-treatment — particulate removal ahead of the membranes.
• Power plant water — water recycling and reuse circuits within the 80°C limit.
• General process water — high flow filtration where bags are changed too often.

Who it is for

Water treatment system integrators, EPC contractors and plant O&M teams running bag filter housings on high flow water or process water, who want fewer change-outs and are prepared to validate a format change.

Typical operating conditions

• Flow: 100–200 GPM per element
• Micron rating: 0.1–100 µm
• Max. temperature: 80°C
• Max. differential pressure: 3.44 bar at 21°C
• Format: 6" (152.4 mm) OD · 330 mm or 660 mm · single open end
• Seals: silicone, NBR, Viton, EPDM

Recommended Pullner product family

PLBG series, part of Pullner high flow filter cartridges. Minimum order is 4 pieces; lead time is 10 working days.

What to send before quotation or sample

• Fluid / media
• Flow rate
• Micron rating
• Temperature
• Pressure
• Existing housing or current model (bag size, bag housing make and model, and a photo of the housing opening)
• Maintenance / change-out cycle
• Validation requirement

What validation is required before switching

• Fit check — engineering reviews your bag size, housing make and model, and a photo of the housing opening to confirm whether the PLBG seats in your existing housing.
• Sample — a sample element is installed to confirm seating and seal before any order.
• Performance trial — the sample runs on your own duty while you log differential pressure, downstream quality and change-out interval against the bags you use today. Scale the order only after that.

What Pullner will not claim without evidence

• Format and specification only: fit in your bag housing is confirmed by fit check, not assumed.
• No claim of a specific filtration-area multiple or service-life gain over your bags until your trial shows it.
• No claim of performance parity with any other brand of bag or cartridge.
• Retention and flow on your duty are confirmed by your own trial.

Get Quote · Request Sample · Send Current Model · Ask Engineering

Can the PLBG replace the bag filters I run now?

It is designed to replace bag filters in high flow duty. Whether it fits your housing depends on the bag size and housing model, so send both with a photo of the housing opening for a fit check. The element is 6" (152.4 mm) in 330 mm or 660 mm lengths.

How is it validated before switching?

Start with a fit check on your bag size and housing, then install a sample. Run it on your own duty and log differential pressure, downstream quality and change-out interval against your current bags. Scale the order only after the trial.

What data or documentation is available?

The full specification is published on this page: media, micron rating, diameter, lengths, end cap, seals, flow, differential pressure and temperature limit. Pullner manufactures under ISO 9001. Tell engineering which documents your approval process needs and request them with the sample.

What are the temperature, pressure and chemistry limits?

The PLBG is polypropylene only, rated to 80°C with a maximum differential pressure of 3.44 bar at 21°C. Flow is 100–200 GPM per element. It is not for hot condensate duty. Chemical compatibility with your fluid, including the seal choice, is reviewed before quotation.

What is the PLBG series?

PLBG is Pullner's series code for this bag filter replacement cartridge: pleated polypropylene, 0.1–100 µm, 6" (152.4 mm) OD, 330 mm or 660 mm long, 100–200 GPM per element. Quote the series code with your bag size and housing model when you request a fit check.
