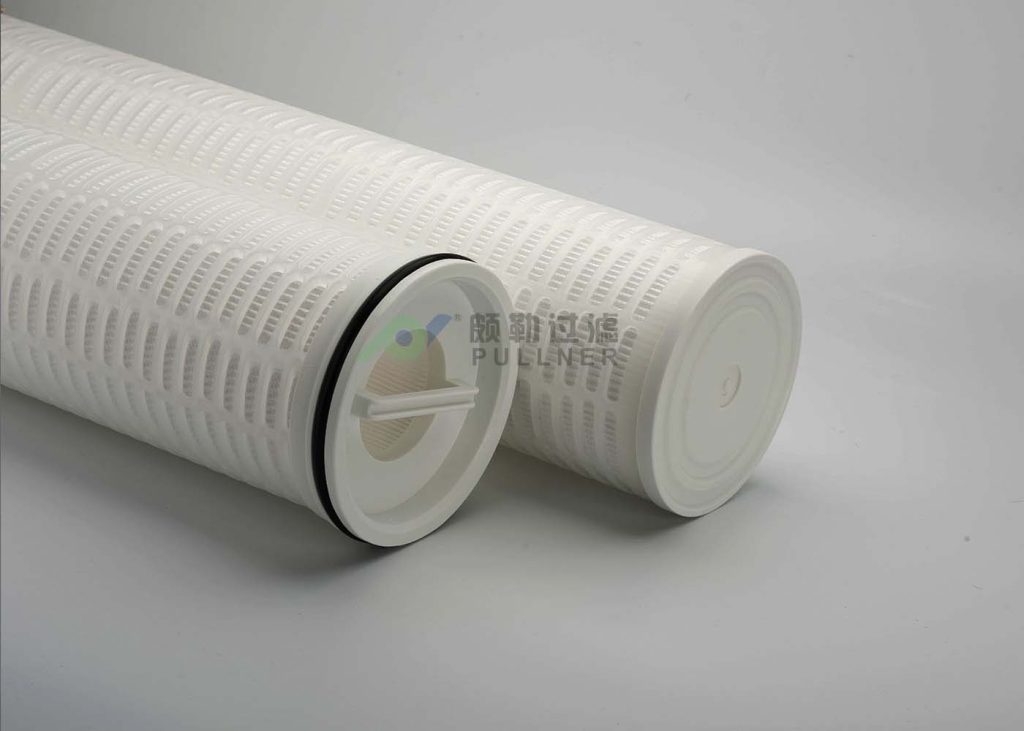

PALL Ultipleat High Flow Water Filter Cartridge Replacement
High flow filter cartridges are designed for applications requiring maximum flow rates with minimal pressure drop. Unlike standard cartridges, these systems can handle 10-20 times the flow rate while maintaining the same footprint.
Perfect for pre-filtration in reverse osmosis systems, cooling tower water treatment, and industrial process water applications where high flow rates are critical.
- Flow Rate
- 50-200GPM
- Micron Rating
- 0.1μm - 100μm
- Max Temperature
- 82℃
- Large Filtration Area, High Flow Rate: 40" high flow filter delivers more than 60 m³/h under standard conditions, for high throughput and long service life.
- Multiple Membrane Material Options: PP membrane uses unique multi-layer Nano-fibre pleated technology to create a gradient structure, increasing dirt-holding space, extending service life, and reducing replacement frequency and system cost.
- Multiple Length Options: 20" (508mm), 40" (1016mm), 60" (1524mm).
- Footprint Reduction: Reduces the number of filter elements by 90% and filter housing footprint by 50% compared to standard systems.
- Fast Changeout: Simplified installation and replacement reduce planned downtime.
Materials of Construction
| Filter Material | PP: Deep Pleated PP / Melt PP | FO: Organic Fiber | GF: Resin Synthetic Glass Fiber |
| Support / Diversion | PP | Organic Fiber | Polyester |
| End Caps | Fiberglass-reinforced polypropylene | Fiberglass-reinforced polypropylene | Fiberglass-reinforced polypropylene |
Performance
| Maximum Operating Temperature | PP: 82℃ |
| Maximum Operating Differential Pressure | PP: 3.44 bar @ 21°C |
Flow Rate and Filtration Area
| Size (Diameter × Length) | Design Flow (m³/hr) | Maximum Flow (m³/hr) | Filtration Area (m²) |
| 6" × 20" | 15 | 40 | 2.6 |
| 6" × 40" | 30 | 80 | 5.2 |
| 6" × 60" | 45 | 120 | 7.8 |
- Microelectronics: Semiconductor, data storage, displays, ultra-pure water, CMP, wet etch and cleans
- Pharmaceutical: Preparations filtration, sterile APIs, biological products
- Food & Beverage: Bottled water, beer, soft drinks, dairy filtration
- Power Plant: Condensate systems, water recycling and reuse
- Desalination: SWRO systems, RO plants
- Oil & Gas: Process water filtration
- Automotive Manufacturing: Parts washing, pre-treatment and electroplating, sealant, paint and coatings
| Series | Type | Media | Micron | Length | Structure | Seal Material | ||||||
| PHF | L | PP | 0010 | = 0.1µm | 1500 | = 15µm | 20 | = 20" | G | = PP Outer Cage | V | = Viton |
| FO | 0100 | = 1.0µm | 2000 | = 20µm | 40 | = 40" | M | = Melt Blown | S | = Silicone | ||
| GF | 0500 | = 5.0µm | 4000 | = 40µm | 60 | = 60" | S | = Plastic Net | E | = EPDM | ||
| 1000 | = 10µm | 7000 | = 70µm | |||||||||
| 1000 | = 100µm | |||||||||||
