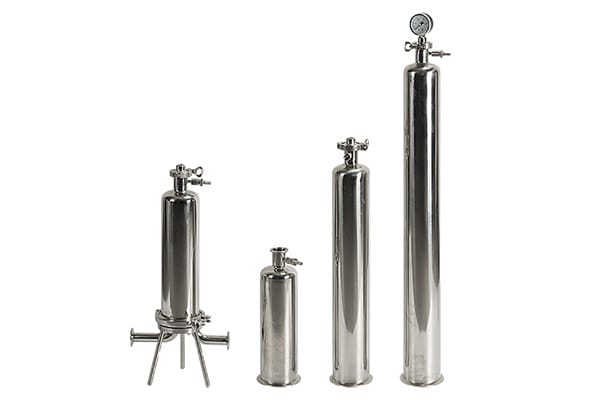

Single Pleated Cartridge Stainless Steel Filter Housing, P-SSF Series
The P-SSF Series single element pleated cartridge filter housing serves small-flow sanitary liquid filtration duties. Built in SS316L or SS304, it supports steam sterilization at 121°C for 30 min for food, beverage and chemical process engineers; send your current element or housing model and operating conditions for a fit check or quote.
- Micron Rating
- 0.1-100 µm
- Flow Rate
- 1-5 GPM per 10"
- Max Temperature
- 130°C
- Material
- SS316L, SS304
- Size
- 114 mm OD · 5-40"
Single Element Pleated Cartridge Filter Housing for Sanitary Lines
P-SSF holds one pleated cartridge in a polished body with no dead legs and full drainage. It belongs to Pullner's stainless steel filter housing range.
How it works: P-SSF provides single-cartridge liquid filtration at small flow rates, with complete drainage.
Key features:
- SS304 or SS316L construction provides material options.
- Steam sterilization at 121°C for 30 min supports sanitary duty.
- An adjusting nut on the P-SSF bracket sets the housing height.
Applications:
- Food & Beverage: process water, syrup, juices, milk and beer.
- Chemical Engineering: solvent clarification and catalyst removal.
- Industrial Water & Wastewater: emulsions and inks.
| Series | P-SSF |
| Micron Rating | 0.1-100 µm |
| Material | SS304, SS316L |
| Sanitary Design | No dead legs, full drainage; steam sterilization 121°C, 30 min; Ra 0.3 µm inside, 0.4 µm outside |
| Outer Diameter | 114 mm |
| Length | 5", 10", 20", 30", 40" |
| End Connection | clamp |
| Seal Material | Silicone, NBR, Viton, EPDM |
| Flow Rate | 1-5 GPM per 10" element (suggested) |
| Design Pressure | 0.6 MPa / 1.0 MPa (6 / 10 bar) |
| Max Temperature | 130°C |
| Certifications | ISO 9001 |
Who Uses the P-SSF Housing
Process engineers on small-flow sanitary or chemical lines who need one cartridge in a steam-sterilizable housing.
P-SSF Operating Conditions
- Cartridge micron ratings span 0.1-100 µm.
- Suggested flow is 1-5 GPM per 10" element.
- Design pressure is 0.6 MPa / 1.0 MPa.
- Maximum temperature is 130°C.
Related Pullner Housings for P-SSF Buyers
For a multi-cartridge format, see the Multi-Pleated Cartridge Stainless Steel Filter Housing.
What to Send for a P-SSF Quote
Send the fluid, flow rate, micron rating, temperature, pressure, current element or housing model, quantity and timeline.
Which Steel Grades Does P-SSF Come In?
The P-SSF Series is built in SS316L or SS304. Surface roughness is Ra 0.3 µm inside and 0.4 µm outside; both materials are listed for this housing.
Can P-SSF Be Steam Sterilized?
Yes. P-SSF housings support steam sterilization at 121°C for 30 min. The sanitary design has no dead legs and provides full drainage for small-flow liquid filtration duties.
What Cartridge Lengths Fit P-SSF?
P-SSF housing lengths are 5", 10", 20", 30" and 40". The housing holds one pleated cartridge, with seal material options of silicone, NBR, Viton and EPDM.
