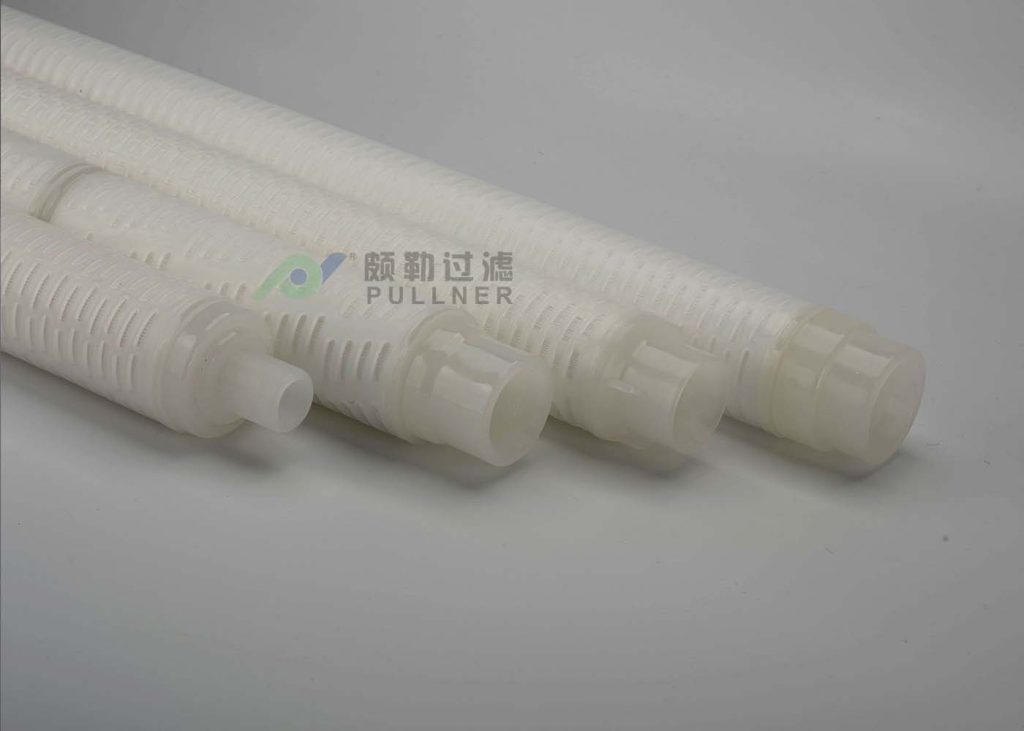

PHFZ Condensate Polishing Pleated Filter Cartridge
The PHFZ condensate polishing filter cartridge is a backflushable pleated PP element for iron removal in power plant condensate, with 6.5 m² of filtration area. Rated 1 to 20 µm with a maximum temperature of 65°C, it serves condensate polishing engineers; send your current element or housing model and operating conditions for a fit check or quote.
- Micron Rating
- 1-20 µm
- Flow Rate
- 10-20 GPM
- Max Pressure Drop
- 3 bar
- Max Temperature
- 65°C
- Material
- PP
- Size
- 65/69/70 mm OD · 60/70"
PHFZ Condensate Polishing Filter Cartridge for Condensate Iron Removal
PHFZ is a backflushable pleated cartridge for iron removal in power plant condensate with or without resin pre-coat.
How it works: The pleated element filters power plant condensate for iron removal and supports backwashing.
Key features:
- PHFZ-I, PHFZ-II and PHFZ-III provide three construction options.
- Max pressure drop is 3.0 bar at 65°C.
- Inlet water quality must be below 2000 ppb.
Applications:
- Power generation: 4 µm, 70" elements are recommended for 600 MW supercritical units.
- Power generation: 1 µm, 70" elements are recommended for 1000 MW ultra-supercritical units.
- Power generation: 10 µm elements are recommended for unit start-up.
| Series | PHFZ |
| Micron Rating | 1-20 µm |
| Material | Polypropylene (PP) |
| Outer Diameter | 65, 69, 70 mm |
| Length | 60", 70" |
| Filtration Area | 6.5 m² |
| Structure | PHFZ-I (7 parts); PHFZ-II (40" + 30" welded); PHFZ-III (20" + 20" + 20" + 10") |
| End Connection | Bottom thread: 1 1/2"-12, M33x1.5; Top thread: 3/8", M6, M8, M10 |
| Flow Rate | 10-20 GPM |
| Inlet Water Quality | Below 2000 ppb |
| Backwash | 0.45-0.65 m³/h water or 3.4-5 m³/h gas per element at 1.36-2.1 bar |
| Recommended Rating | 600 MW supercritical: 4 µm, 70"; 1000 MW ultra-supercritical: 1 µm, 70"; 10 µm for start-up |
| Max Pressure Drop | 3.0 bar @ 65°C |
| Max Temperature | 65°C |
| Certifications | ISO 9001 |
Power Plants Running PHFZ
PHFZ serves condensate polishing engineers at supercritical and ultra-supercritical units.
PHFZ Fit and Thread Data
- Outer diameters are 65, 69 or 70 mm.
- Flow rate is 10 to 20 GPM.
- Bottom threads are 1 1/2"-12 or M33x1.5.
- Top threads are 3/8", M6, M8 or M10.
PHFZ in Pullner's Pleated Cartridge Range
PHFZ is a backflushable pleated cartridge for power plant condensate iron removal.
Before a PHFZ Quote, Send
Fluid, flow rate, micron rating, temperature, pressure, current element or housing model, quantity and timeline.
Which PHFZ Rating Suits a 600 MW or 1000 MW Unit?
Pullner recommends a 4 µm, 70" PHFZ element for 600 MW supercritical units and a 1 µm, 70" element for 1000 MW ultra-supercritical units. The recommended start-up rating is 10 µm.
How Is a PHFZ Element Backwashed?
At 1.36 to 2.1 bar, each PHFZ element takes 0.45 to 0.65 m³/h of backwash water or 3.4 to 5 m³/h of gas, as specified in the published backwash data.
How Do PHFZ-I, PHFZ-II and PHFZ-III Differ?
PHFZ-I is made in 7 parts. PHFZ-II welds a 40" and a 30" section, while PHFZ-III has a 20" + 20" + 20" + 10" structure for condensate filtration.
