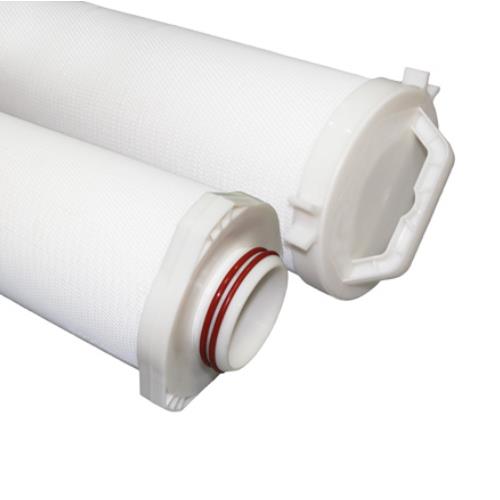

Pentair Aqualine High Flow Filter Cartridge Replacement
PFLBT series high flow filter cartridge is Pentair Aqualine high flow water filter cartridge replacement. The polypropylene construction provides superior chemical resistance.
It’s large diameter (6.75″) with an outside-inside flow realizing the use of significantly smaller housing and fewer filter elements. Better cost-efficiency, Lower expense, customized service. Reduce the operation and maintenance cost of filter element.
- Flow Rate
- 500 GPM
- Micron Rating
- 5, 10, 25 μm
- Max Temperature
- up to 80°C
- Melt-blown polypropylene filter media
- Reinforced PP center core
- Positive O-ring seal
- Multi-layer membrane structure for graded filtration
- Wide chemical compatibility
- Perfect fit to original Pentair Aqualine high flow FRP vessels
- Improved cost-efficiency in RO pre-filtration
- Approximately 23× the media area of a standard 10" pleated filter
- OEM / ODM services available
- Outer Diameter: 6.75"
- Length: 40" / 60"
- Media: Melt-blown polypropylene
- Center Core: Reinforced polypropylene
- Sealing: Positive O-ring
- Microelectronics: Semiconductor, data storage, displays, ultra-pure water, CMP, wet etch and cleans
- Pharmaceutical: Preparations filtration, sterile APIs, biological products
- Food & Beverage: Bottled water, beer, soft drinks, dairy filtration
- Power Plant: Condensate systems, water recycling and reuse
- Desalination: SWRO systems, RO plants
- Oil & Gas: Process water filtration
- Automotive Manufacturing: Parts washing, pre-treatment and electroplating, sealant, paint and coatings
| Series | Type | Media | Micron | Length | Structure | Seal Material | ||||||
| PHF | BT | PP | 0010 | = 0.1µm | 1500 | = 15µm | 20 | = 20" | G | = PP Outer Cage | V | = Viton |
| PBT | 0100 | = 1.0µm | 2000 | = 20µm | 40 | = 40" | M | = Melt Blown | S | = Silicone | ||
| GF | 0500 | = 5.0µm | 4000 | = 40µm | 60 | = 60" | S | = Plastic Net | E | = EPDM | ||
| 1000 | = 10µm | 7000 | = 70µm | |||||||||
| 1000 | = 100µm | |||||||||||
