Parker High Flow Filter Cartridge Replacement

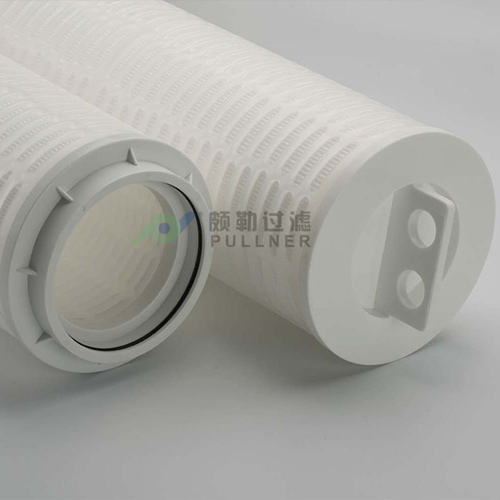

PHFK Series High Flow Filter Cartridge is made of diameter 6″ and pleated design, with high-strength pp center core, outside to inside flow direction. Outer cage have two types: integral pp cage and polyester mesh.
- Flow Rate
- 88GPM - 176.1GPM
- Micron Rating
- 0.1μm - 70μm
- Max Temperature
- 121℃
- Micron ratings: 0.1, 0.5, 1, 5, 10, 15, 20, 40, 70µm
- Max. operating temperature: Pleated / melt-blown PP — 82℃; Pleated glass fibre — 121℃
- Max. operating differential pressure (inside-to-outside flow): Pleated / melt-blown PP — 3.44 bar @ 82℃; Pleated glass fibre — 3.44 bar @ 121℃
- Recommended replacement pressure: 2.5 bar @ 20℃
- Recommended design flow: 40" — ≤20 m³/h; 60" — ≤40 m³/h
- RO pre-filtration, desalination pre-treatment, and general process water filtration
- Power plant makeup water, condensate water, and coolant filtration
- Biopharmaceutical raw materials, solvents, and water filtration
- Petrochemical solvents, quench water, brine, and other chemical streams
| Series | Type | Media | Micron | Length | Structure | Seal Material | End Cap Type | |||||||
| PHF | K | PP | 0010 | = 0.1µm | 1500 | = 15µm | 20 | = 20" | G | = PP Outer Cage | V | = Viton | ZA | = Single-Ring (HFK) |
| PBT | 0100 | = 1.0µm | 2000 | = 20µm | 40 | = 40" | S | = Plastic Net | S | = Silicone | ZB | = Double-Ring (HFK) | ||
| GF | 0500 | = 5.0µm | 4000 | = 40µm | 60 | = 60" | E | = EPDM | ||||||
| 1000 | = 10µm | 7000 | = 70µm | |||||||||||
| 1000 | = 100µm | |||||||||||||
