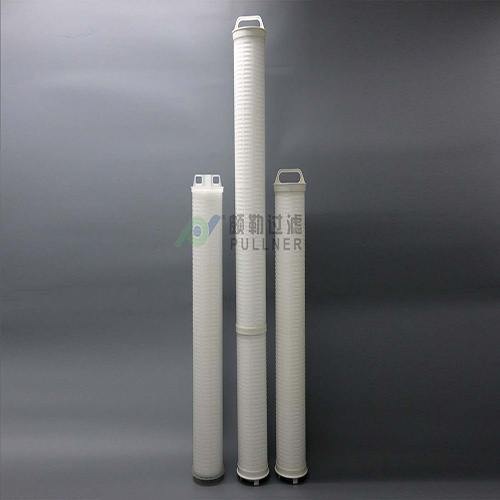

3M CUNO High Flow Filter Cartridge Replacement (PHFM Series)
PHFM High Flow Filter Cartridge is made of diameter 6.5″ and pleated design with big flow area and dirt holding capacity. It can meet different flow requirements, with a wide range of chemical compatibility, can be applied to various fields.
- Flow Rate
- 88 GPM - 176 GPM
- Micron Rating
- 1μm-100μm
- Max Temperature
- 82℃
- Micron: 1–100µm
- Maximum operating temperature: 82℃
- Maximum operating differential pressure: 3.44 bar @ 82℃
- Recommended replacement pressure: 2.5 bar @ 20℃
- Recommended max flow rate: 20" — 35 m³/h; 40" — 70 m³/h
- Reference: PHFM 40" (1016mm) — clean-cartridge pressure drop specification available on request
- RO pre-filtration and desalination pre-treatment
- Power plant condensate water filtration
- Biopharmaceutical raw materials, solvents, and water filtration
- Food & beverage process water treatment
| Series | Type | Media | Micron | Length | Structure | Seal Material | End Cap Type | |||||||
| PHF | M | PP | 0010 | = 0.1µm | 1500 | = 15µm | 20 | = 20" | G | = PP Outer Cage | V | = Viton | ZA | = Horizontal-Bar Type (HFM) |
| W | PBT | 0100 | = 1.0µm | 2000 | = 20µm | 40 | = 40" | M | = Melt Blown | S | = Silicone | ZB | = Cross-Shaped Type (HFM) | |
| GF | 0500 | = 5.0µm | 4000 | = 40µm | 60 | = 60" | S | = Plastic Net | E | = EPDM | ||||
| 1000 | = 10µm | 7000 | = 70µm | |||||||||||
| 1000 | = 100µm | |||||||||||||
